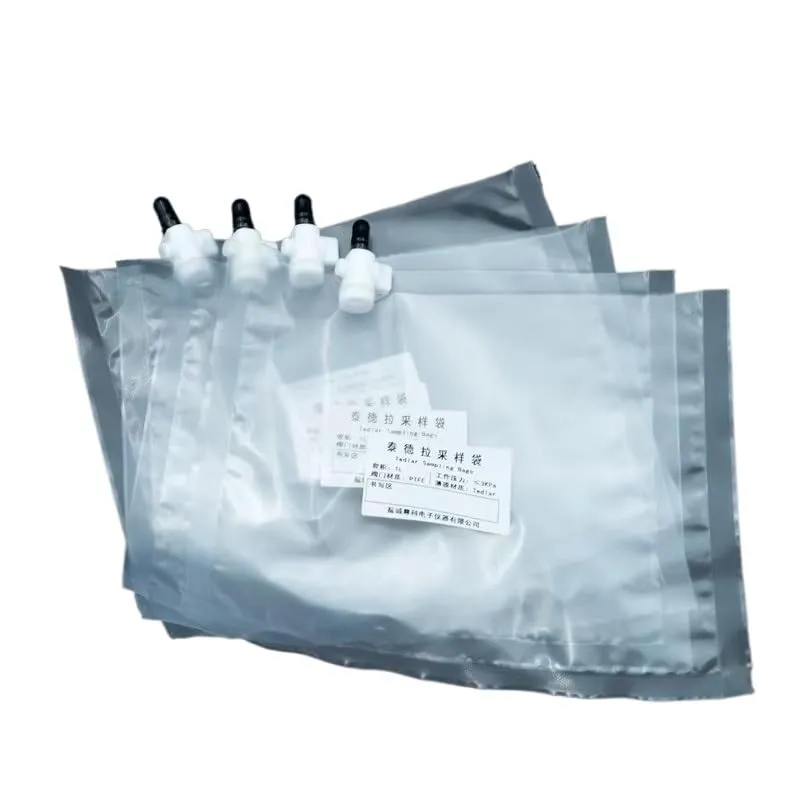

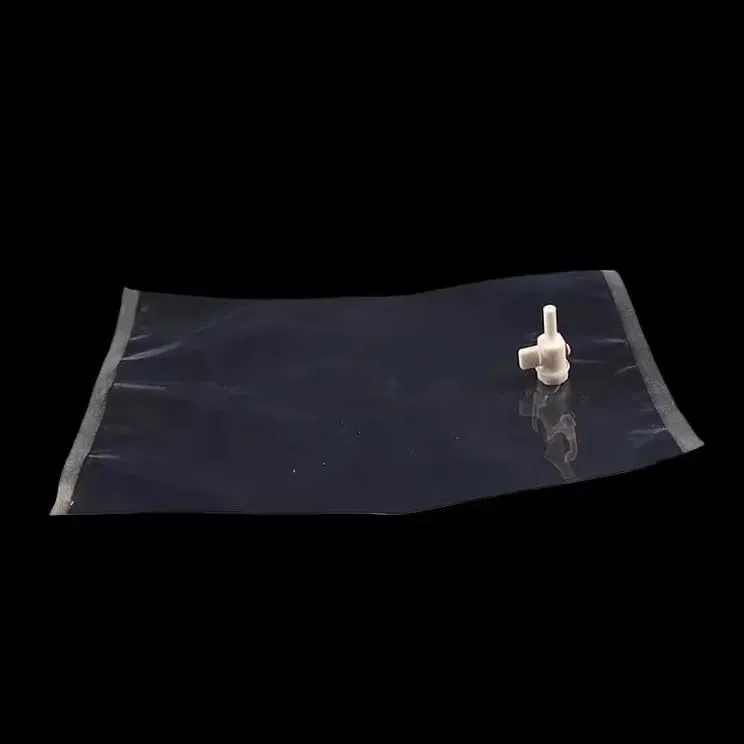

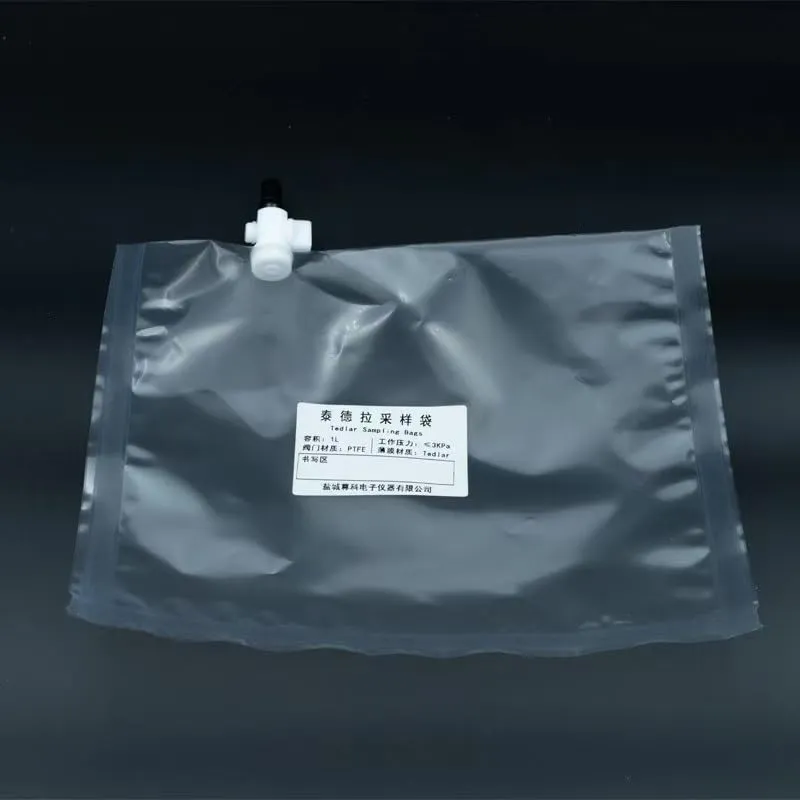

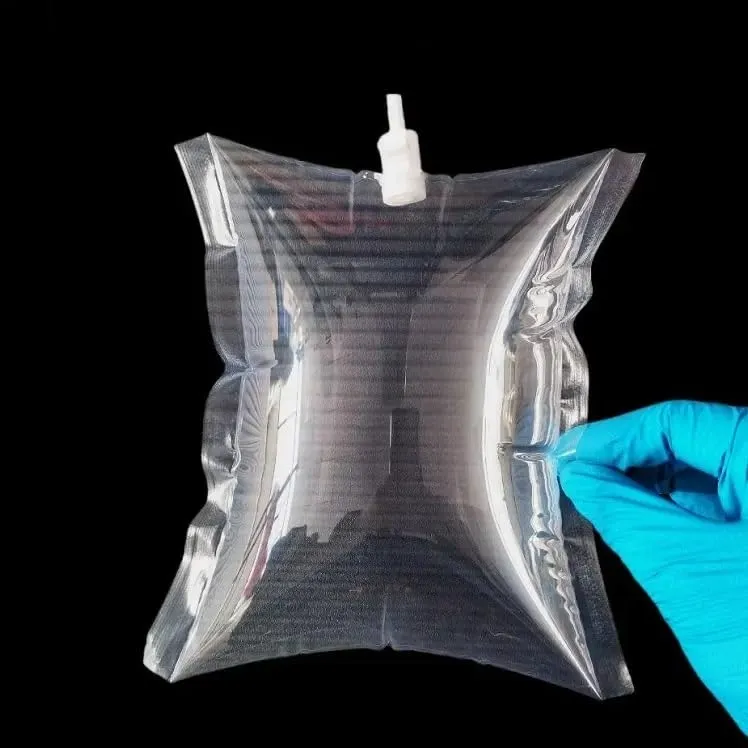

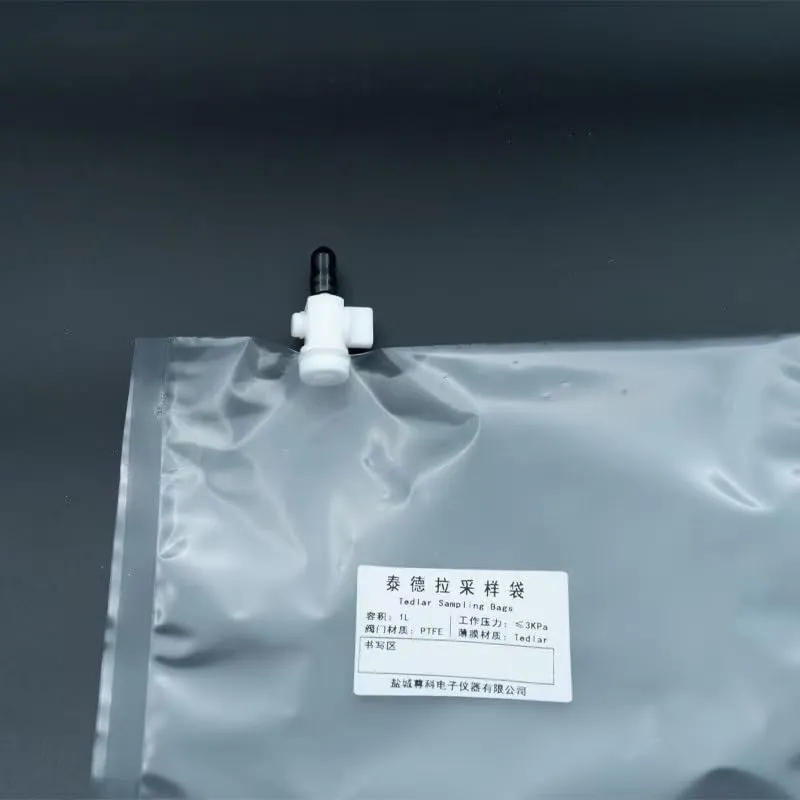

Tedlar PVF Gas Sampling Bag
Tedlar PVF Gas Sampling Bag is made of 2mil DuPont's Tedlar film. In the late 1970s SKC USA used Tedlar film to make gas sampling bags for the first time, Tedlar PVF is strong, durable, and considered chemically inert to a wide range of compounds. Tedlar gas sampling bag can be used in high precision PPM level analysis sampling, can sample and save all kinds of corrosive gas and liquid samples, the heat-resistance temperature of Tedlar is 150℃～170℃.
used to solid VOCs residual detection. Such as automobile engine, automotive parts, household items detection.
Low gas permeation levels
High tensile strength
Continuous temperature range from –98°F to 225°F
Unaffected by the chemical components of gases commonly sampled, like carbon monoxide, sulfur dioxide, hydrogen sulfide, radon and mercaptans
Features:
Excellent chemical resistance, corrosion resistance, organic solvent resistance, and low adsorption.High tensile strength.
The water vapor osmotic quantity of Tedlar film is 13g/m2.24h.0.1MPa; and oxygen osmotic quantity is 114cc/m2.24h.0.1MPa (the data is measured value not guarantee value).
Gas barrier property of Tedlar PVF film is superior to Teflon FEP film.
Less permeable than FEP, Kynar PVDF and Fluode.
Bags resist puncture in the field.
Recommended in many EPA testing methods.
Standard Tedlar Gas Sampling Bag Sizes:
0.5L, 1L, 2L, 3L, 4L, 5L, 8L, 10L, 15L, 20L, 30L, 40L～6000L .
Applications:
Tedlar PVF film is strong, durable, and considered chemically inert to a wide range of compounds. Tedlar gas sampling bag can be used in high precsion PPM level analysis sampling, can sample and save all kinds of corrosive gas and liquid samples, and used to solid VOCs residual detection.
Parameter:
Material of bag: PVF

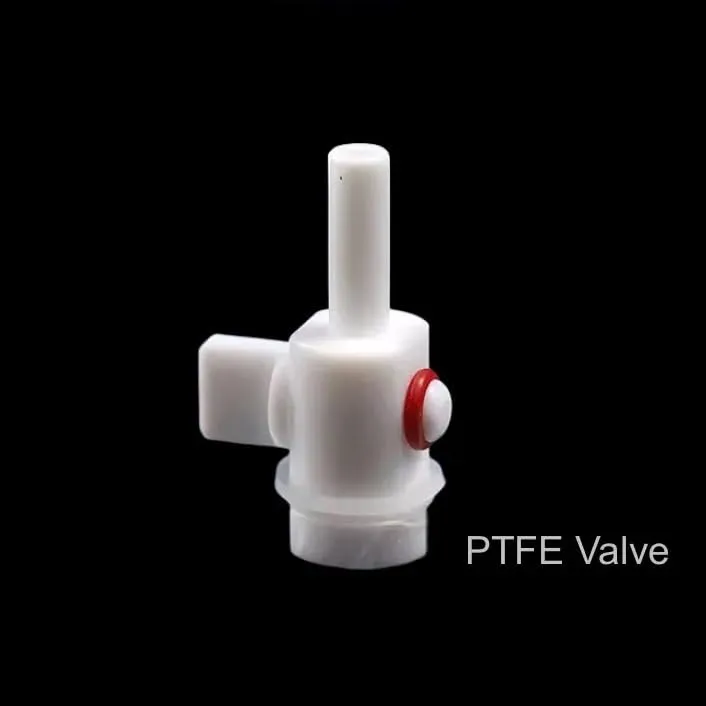

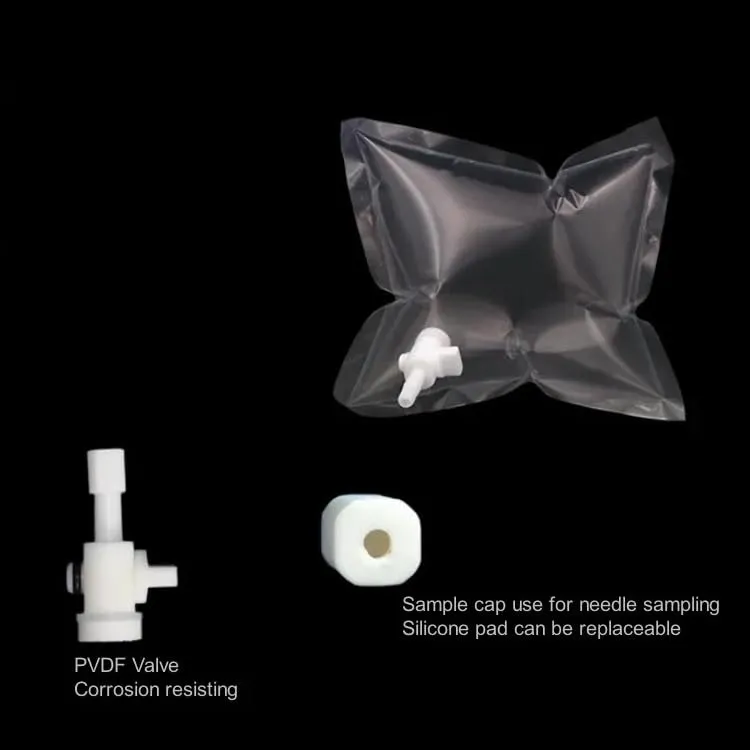

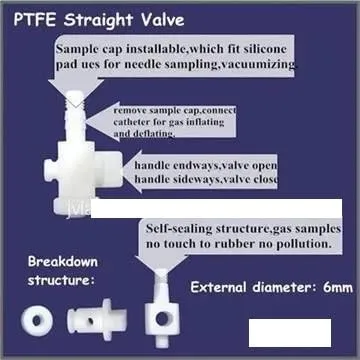

Material of valve: PTFE
Number of valve: 1
Capacity: 0.5L, 1L, 2L, 3L, 4L, 5L, 8L and 10L can be choose.
Operation guide:
The sample

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ December 10, 2024
• Manufacturer ‏ : ‎ LCGJZTPN
• Country of Origin ‏ : ‎ China
