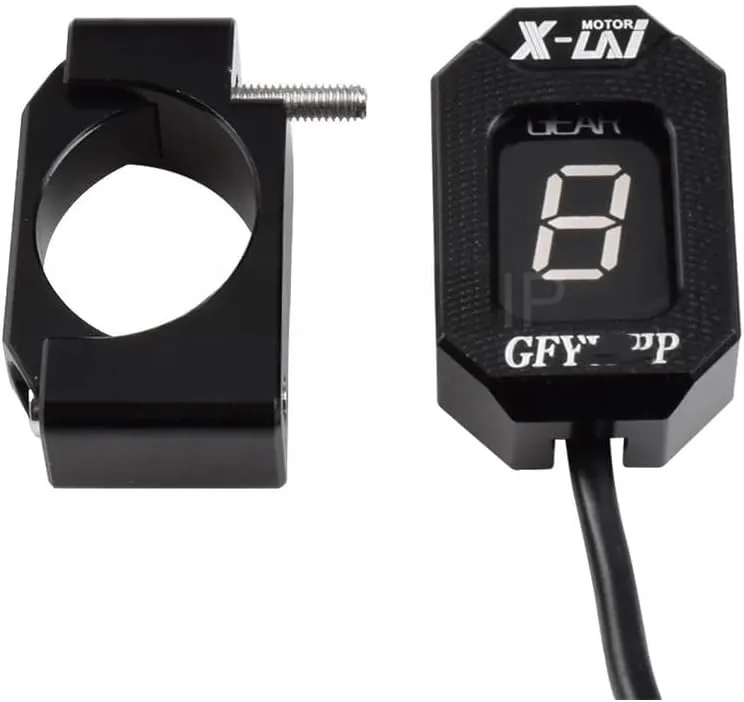

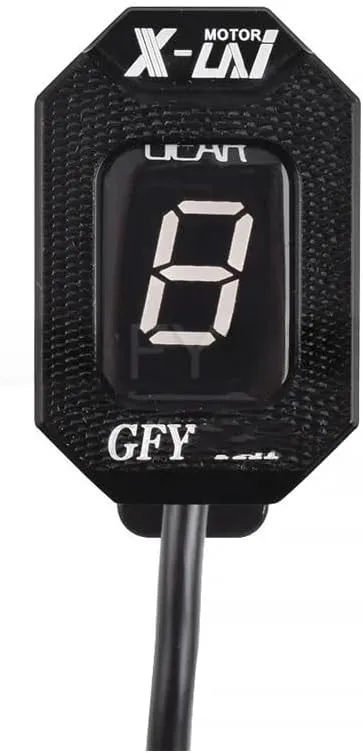

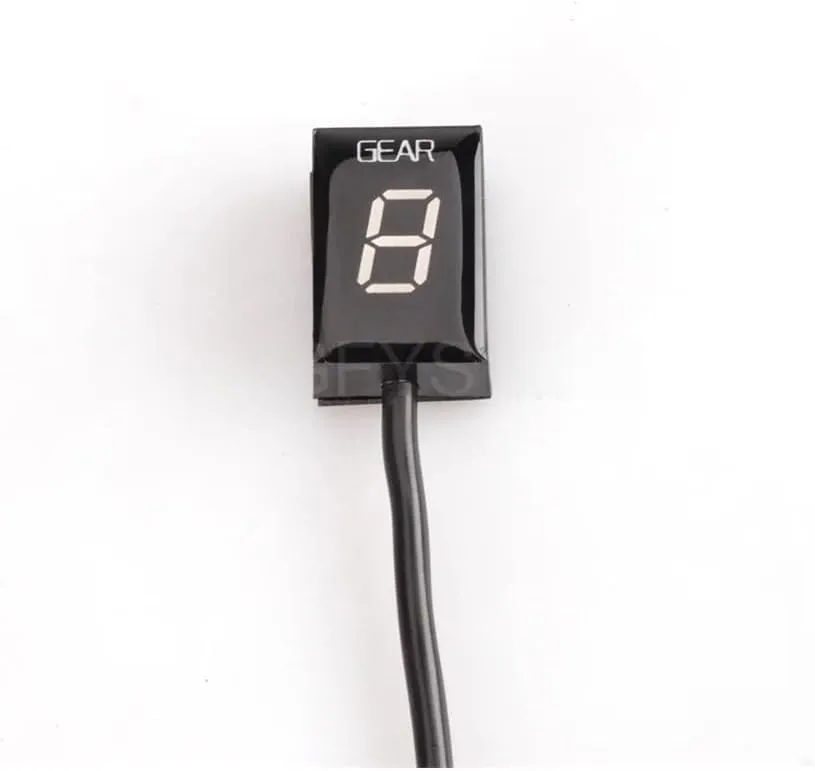

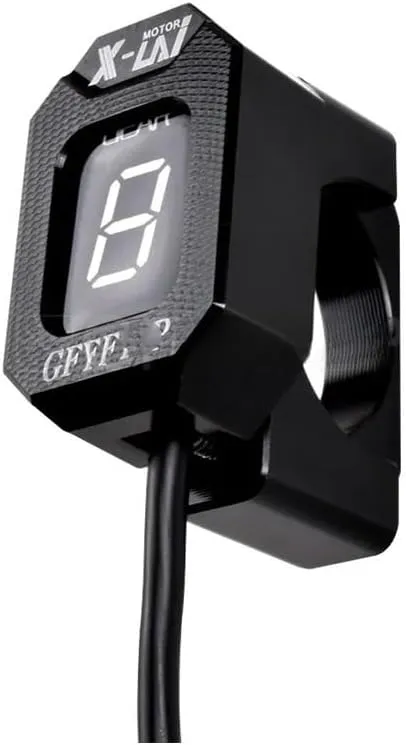

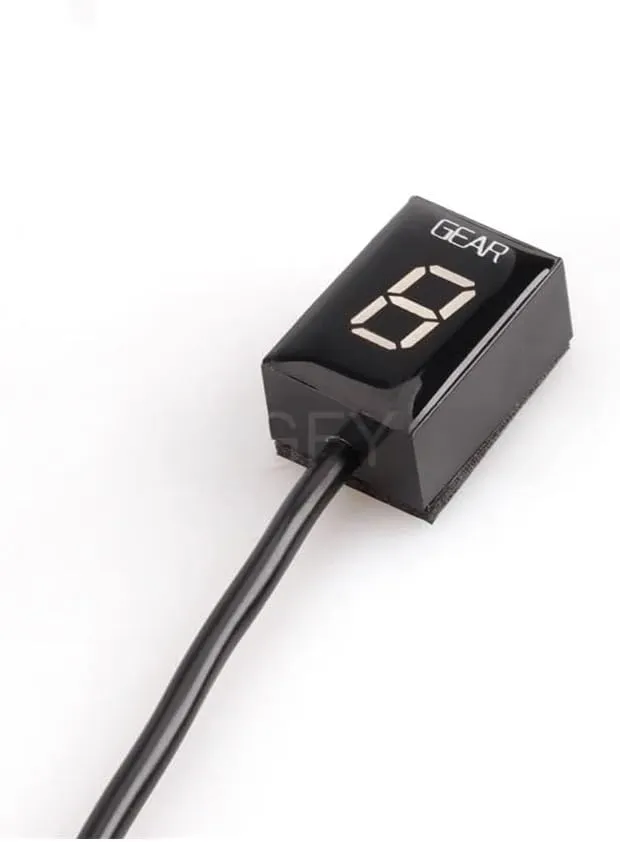

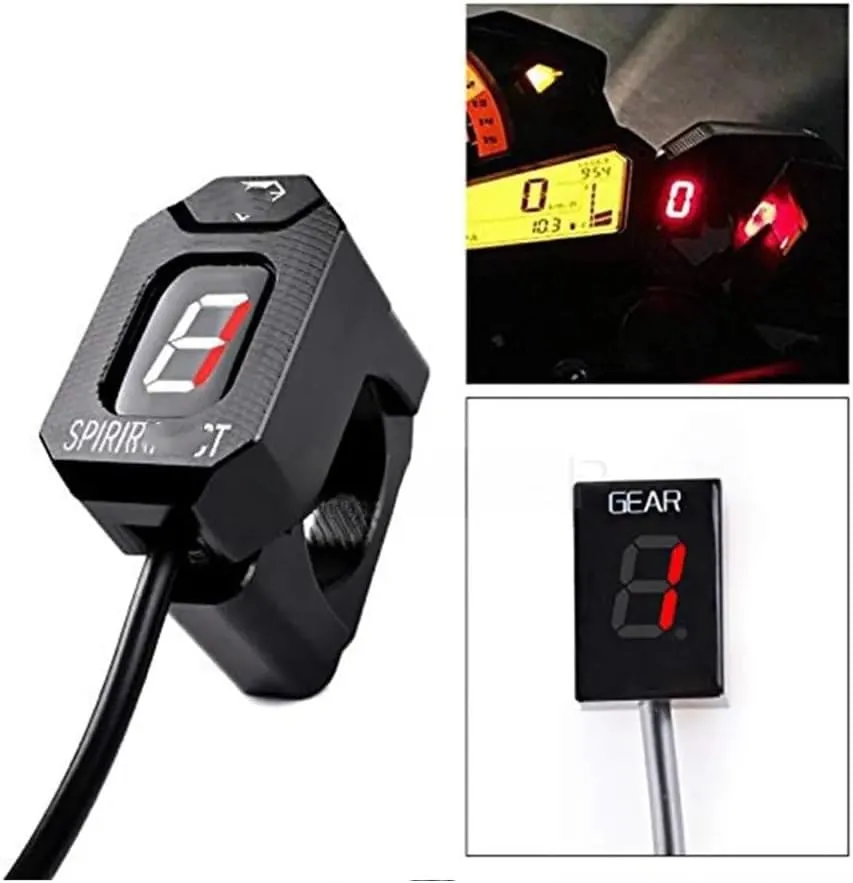

For Daelim ALL With Digital Trip / ODO ALL YEARS Motorcycle Gear Indicator 1-6 Level Digital Gear Meter

Features:
1-6 Level IP68 Gear display

Installation:
You need to connect 4 wires to the bike's wiring harness. connectors are supplied (4 pcs wire taps). No need to any wires and no need for soldering.
All connections can be done either under the fuel tank, at the ECU box or behind the instrument cluster.

Setup:
You need to setup the module after installation. When ignition is turned on, the
display counts backwards (6 to 1) indicating that the memory is clear.
- Raise the rear wheel off the ground by using a stand, and start the
engine in Neutral. (If you do not have a stand, you may setup the unit while
riding. Find a long, straight road with light traffic.)
- The display will blink "1".
Select first gear, release the clutch, and keep the RPM above idle speed.
The display is blinking faster while the unit is learning the gear.
- When the display shows "2", select second gear.
Repeat this process until all gears are thought (5 or 6).
The unit is programmed and should indicate the gears correctly.
Now, when ignition is turned on, the display counts forward (1 to 6) indicating
that it is fully functional.
