- Function：Gear Indicator Motorcycle high and low temperature resistant, not easy to damage.
- Features：Motorcycle Gear Display Indicator Reduce Fuel Consumption.
- Features：Motorcycle Gear Display Super waterproofing Even soaked in water would be fine.
- The Motorcycle Gear Display can remind you of the current gear to make riding safer.
- The Motorcycle Gear Display perfectly into the look of your motorcycle.

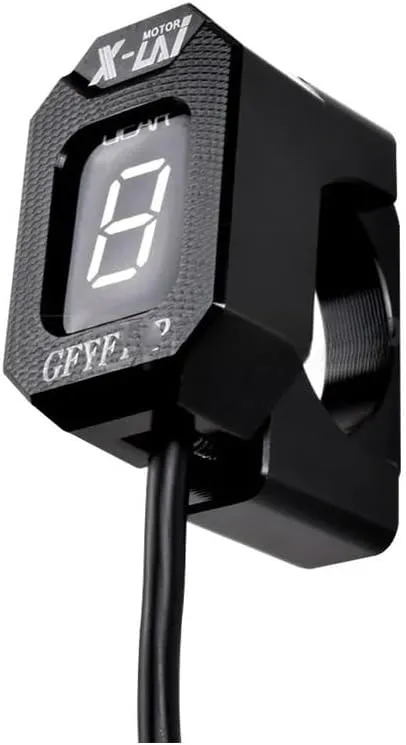

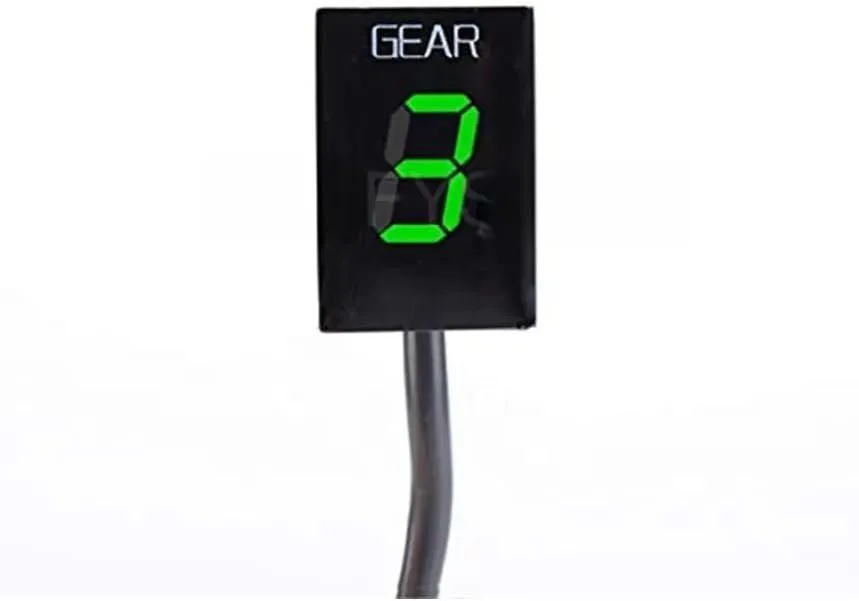

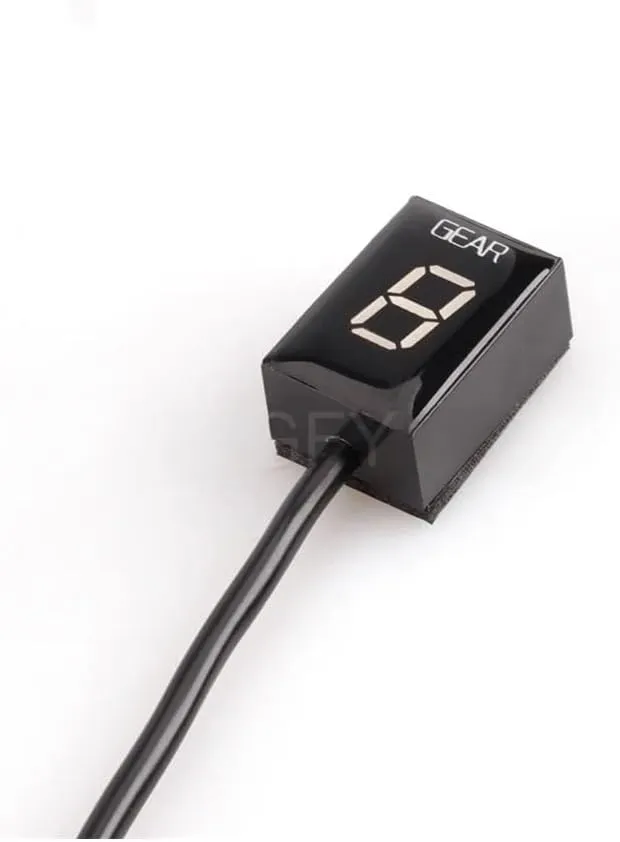

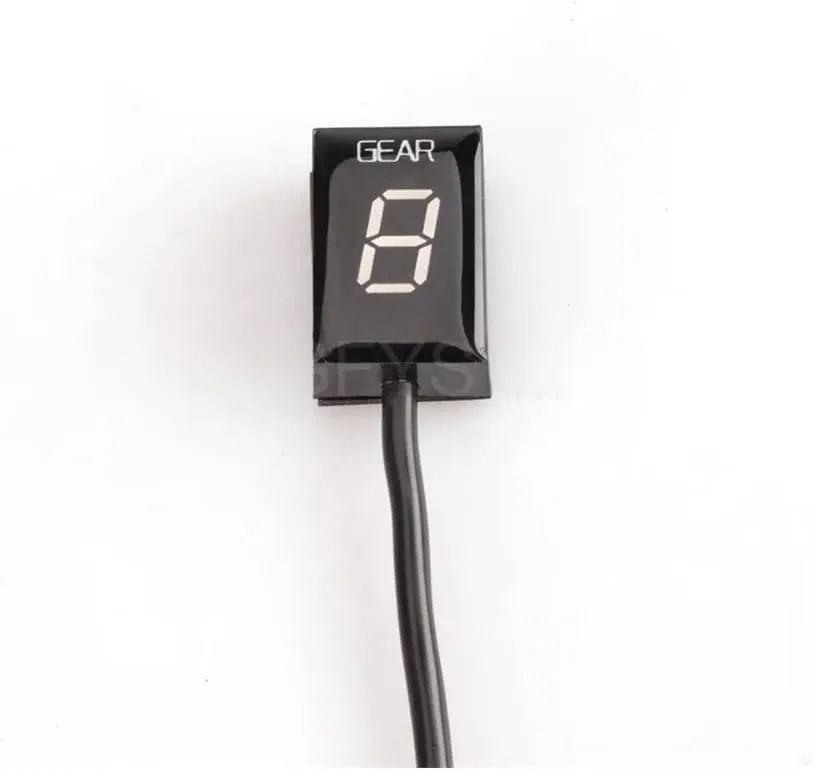

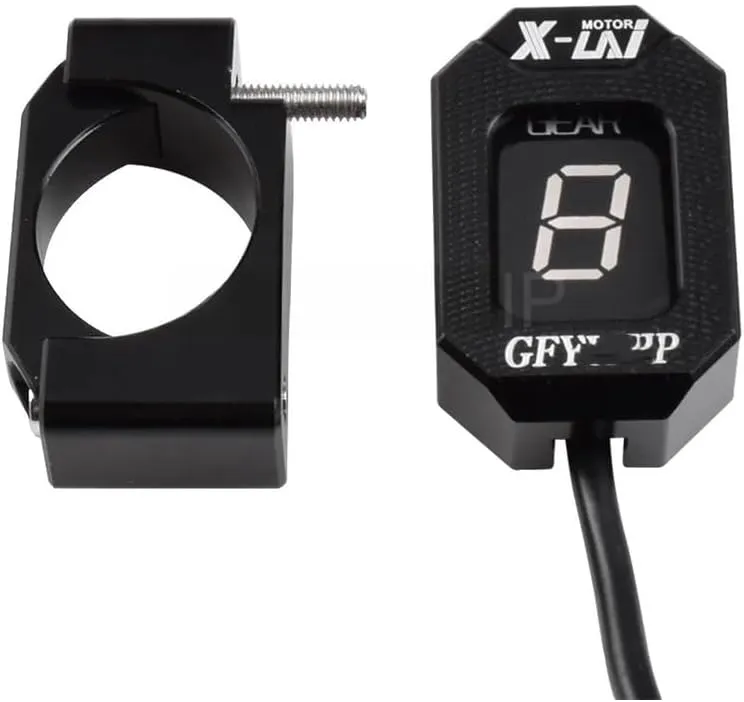

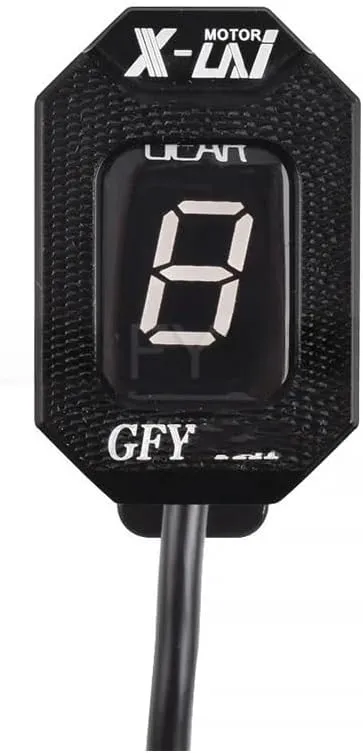

For Daelim ALL With Digital Trip / ODO ALL YEARS Motorcycle Gear Indicator 1-6 Level Digital Gear Meter
Features:
1-6 Level IP68 Gear display
Installation:
You need to connect 4 wires to the bike's wiring harness. connectors are supplied (4 pcs wire taps). No need to any wires and no need for soldering.
All connections can be done either under the fuel tank, at the ECU box or behind the instrument cluster.
Setup:
You need to setup the module after installation. When ignition is turned on, the
display counts backwards (6 to 1) indicating that the memory is clear.
- Raise the rear wheel off the ground by using a stand, and start the
engine in Neutral. (If you do not have a stand, you may setup the unit while
riding. Find a long, straight road with light traffic.)
- The display will blink "1".
Select first gear, release the clutch, and keep the RPM above idle speed.
The display is blinking faster while the unit is learning the gear.
- When the display shows "2", select second gear.
Repeat this process until all gears are thought (5 or 6).
The unit is programmed and should indicate the gears correctly.
Now, when ignition is turned on, the display counts forward (1 to 6) indicating
that it is fully functional.
Thank you for your attention.If you have any problems or need help, please contact us before or after your purchase.We will do our best to help you with the solution.
